Application

• For walls and ceilings
• This door should be used in walls when temperature rise or heat transmission is a factor.

Product Features

• Insulated door panel
• Concealed hinge
• Self-closing
• Self latching
• Inside latch release

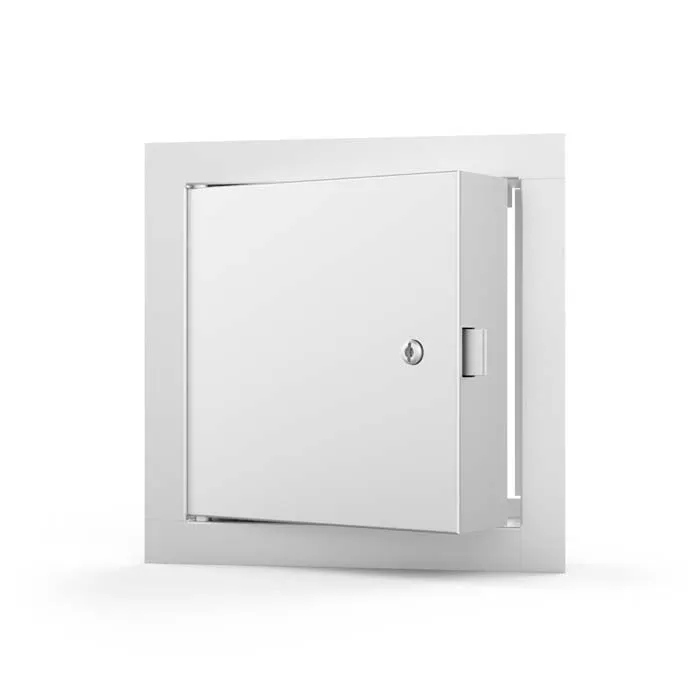

FW-5050 Access Door Specifications

• Material: Steel or Stainless Steel
• Door: 20 gauge, filled with 2" thick fire rated insulation
• Mounting Frame: 16 gauge, flange to be 1" wide
• Hinge: Concealed
• Fire Rating (Walls): UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. Max size: 36 x 48. (Ceilings): Warnock Hersey International 3 hour rated in a non-combustible ceiling. 1 hour rated in a combustible ceiling. Max size: 24 x 36
• Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for mortise cylinder locks.
• Finish:  Steel: 5 stage iron phosphate preparation with prime coat of white baked-on enamel. Stainless Steel: Type 304 - #4 satin polish
