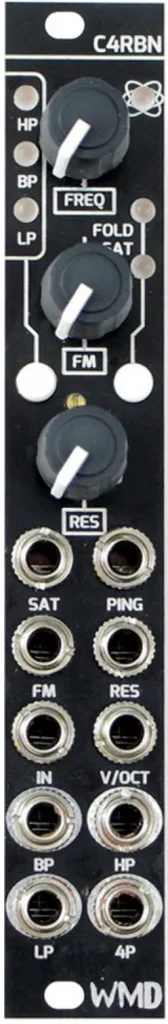

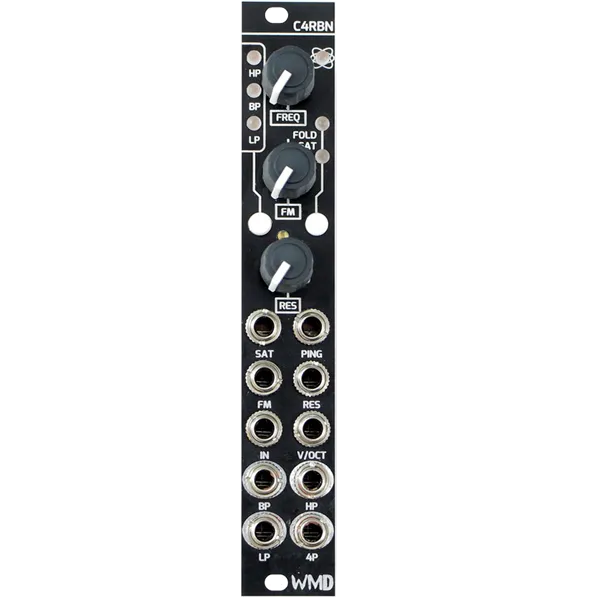

C4RBN (pronounced "Carbon") is a 4/2-Pole State Variable Filter with input saturation, output wavefolding, and more.  It features a wide range of character from nice and clean filter sounds to screaming, squelchy, acidic mayhem.

C4RBN builds on WMD’s history with state-variable filters adding interface refinements and improved warm environment stability for live performance and beyond. A novel input saturation circuit plus the output wavefolder from WMD’s classic filter pair together to push the timbral flexibility to the next level. C4RBN is the building block to life in your eurorack.

Highlights

• 3 independent 2 pole outputs for High Pass, Low Pass, and Bandpass
• Inverting Attenuator (attenuverter) for FM allows for positive and negative CV control over the cutoff frequency
• Independent 4 Pole output with switchable frequency response
• Input Saturation with 3 switchable levels and CV input for additional fine control
• PING circuit generates a fast decay envelope emulating the response of a vactrol
• Output wavefolder for extra bite and screaming character
• Resonance with self oscillation
• Temperature compensated 1V/Oct tracking.
• Performance focused control scheme allows for on-the-fly changes of filter types with intention

Specs:

Size: 4hp

PCB height: 112mm

Depth: 38mm (with cables)

Power:  92mA, -82mA

Audio Input: 100k ohm impedance

20Vpp range

V/Oct Input: 82k ohm impedance

Temperature Compensated

CV Inputs: >100k ohm impedance

Filter Outputs: 1k ohm impedance

20Vpp range
