Affordable Premium Portable B&W

ECO1Vet portable ultrasound is an excellent cost effective choice for a diagnostic tool. Offers a streamlined workflow, and a slim light design. Offers high frequency probes with excellent image quality.

ECO1Vet has a streamlined workflow with real time image save, one key image save for still image and cine loop (most ultrasounds have complicated image save with many steps). Saved image and cine loop are right on the screen to make for easy browsing.  Images and cine loop can be sent to USB, and read on PC (most black and white ultrasounds can not read cine loop on PC).

ECO1Vet is better when compared with Edan DUS 60. DUS 60 cannot include images in report, has fixed screen, is much larger, and keyboard is not streamlined. Compared with Mindray DP10 & DP20, ECO1 has a higher working platform, full screen easy access, comparable image quality, long cine memory, FDA approval, better linear rectal probe, ability to switch from human to vet software, better accessories and a better price.

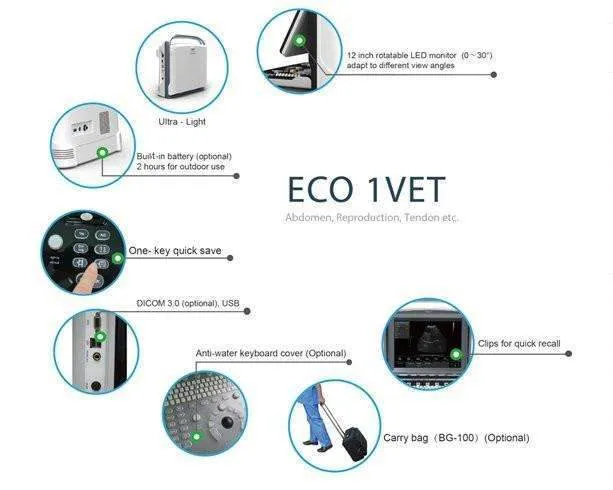

Features

• Reliable
• LED High Resolution Screen
• 30 Degree Rotatable Monitor
• One Key to Full Screen Mode
• Compound Imaging, One Step Image Saving, Friendly Easy Review of Images
• 4G Memory Standard
• Multiple Beamforming Technology
• Enhances Fram Rate
• Improves Image Resolution
• Supports Video Printer and PC Printer
• Patient information management, images record, and exam report
• Full screen documentation, Hospital name, Patient name, Date/time
  Annotation database available, Pre-saved phrases can be recalled

Specifications

• Applications for large animal: reproduction, tendon
• Applications for small animal: abdomen, small parts, basic cardiology
• Display Modes: B, B/B, 4B, M, B/M
• Gray Scale: 256 levels
• Scanning Depth: 240mm Max (depending on probe)
• Probe frequency: 2.5MHz - 11 MHz (depending on probe)
• Probe connectors: one
• Cine loop: 256 frames
• Zoom: 4 steps
• AC 240V-100V, 50Hz- 60Hz

Software Packages

General Measurements

Standard Configuration includes

Optional
