RAM Motorcycle Combination Base for Handlebar or Brake/Clutch Reservoir with 25mm (1") Ball By RAM Mount

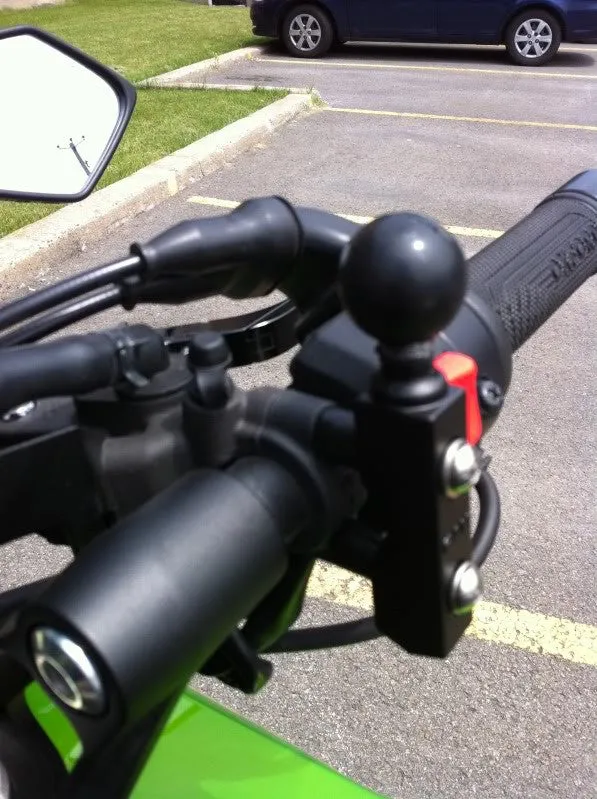

- The RAM combination handlebar and brake/clutch reservoir base provide the ultimate flexibility for mounting to your motorcycle.
- Mount to either your handlebar or brake/clutch, almost infinite adjustment, and perfect viewing angles are provided in this kit.
- Hardware: Standard or metric thread stainless steel bolts, provided in the kit.
- The zinc-coated metal U-bolt accommodates rails in diameter from 12.7mm to 31.7mm (0.50" to 1.25") in diameter.
FEATURES
- Combination handlebar and brake/clutch reservoir base for motorcycles; includes U-bolt hardware
- Included B size 25mm (1") RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
HARDWARE INCLUDED
- (2) M6 x 55mm Hex Bolts
- (2) 6.3mm-20 (1/4"-20) x 50.8mm (2") Hex Bolts
- (2) 6.3mm-20 (1/4"-20) x 63.5mm (2.5") Hex Bolts
- (2) 12.7mm (1/2") Spacers
- (2) 6.3mm (1/4") Split Lock Washers
- (1) (6.3mm-20) (1/4"-20) U-Bolt for 12.7mm (.5") - 25mm (1") Rails
- (1) (6.3mm-20) (1/4"-20) U-Bolt for 25mm (1") - 31.7mm (1.25") Rails
- (2) (6.3mm-20) (1/4"-20) NY lock Nuts
- (2) Rubber Caps
- (1) U-Bolt Spacer
CLAMP RANGE
- 12.7mm (0.5") - 31.7mm (1.25") diameter
BALL/SOCKET SIZE
- B Size 25mm (1")
MATERIALS
- Marine-grade aluminum
Part Number:- RAM-B-309-7U
