General Information

Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: EAP225_V3
Brand Name: TP-Link
Product Model: EAP225

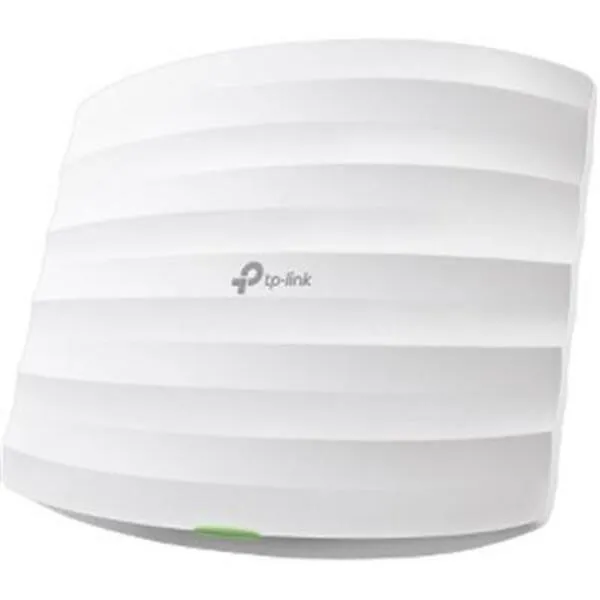

Product Name: AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
Marketing Information:

An Affordable Business-Class
802.11ac MU-MIMO Wi-Fi Solution

Superior Wi-Fi Speeds with MU-MIMO Technology

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

EAP Controller Software

Easy for Centralized Management

Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There's no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

Efficient Guest Authentication with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation

EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.

Unified Wi-Fi for Multi-user Business Environment

The Omada business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It's the perfect fit for motels, salons, chain-stores, schools, and restaurants.

Product Type: Wireless Access Point

Technical Information

Wireless LAN Standard: IEEE 802.11ac
Network Band: Dual Band
Frequency Band: 2.40 GHz
Frequency Band: 5 GHz
Total Number of Antennas: 3
Number of Internal Antennas: 3
Indoor/Outdoor: Indoor
Wireless Transmission Speed: 1.32 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes

Interfaces/Ports

Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
VGA: No
HDMI: No
USB: No
Powerline: No
Management Port: Yes

Power Description

Power Consumption: 12.60 W

Physical Characteristics

Form Factor: Ceiling Mountable
Form Factor: Wall Mountable
Antenna Form Factor: Internal
Height: 1.5"
Width: 8.1"
Depth: 7.1"

Miscellaneous

Package Contents:

• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide

Environmentally Friendly: Yes
Environmental Certification: RoHS
