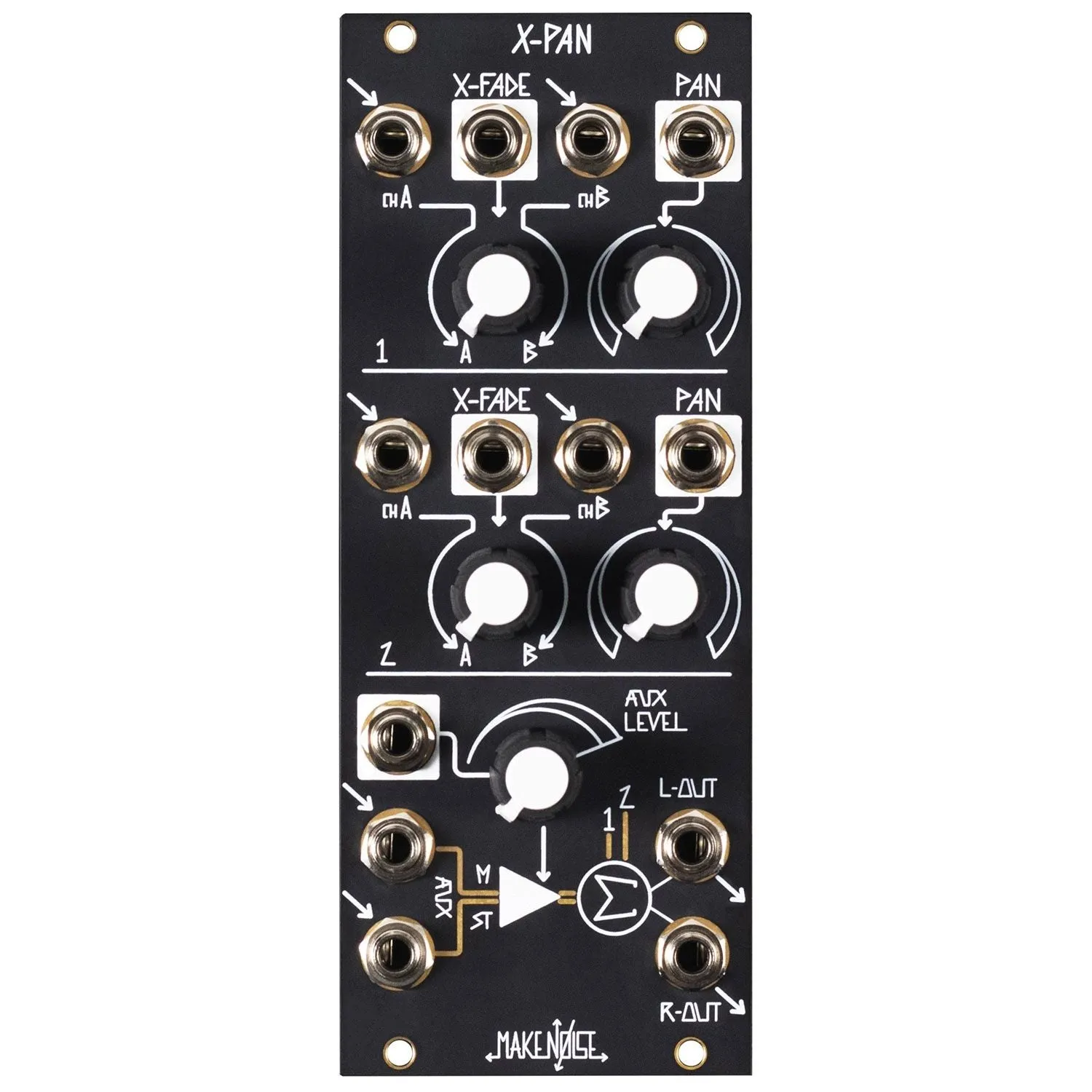

The X-PAN music synthesizer module is a compact and powerful 5 channel Voltage Controlled Stereo Mixer with Low Noise and High Headroom allowing for creation of complex panoramic audio imagery in just 10hp.

X-PAN is highly responsive to control signals allowing for exploration of the fluctuating stereo sidebands possible with Audio Rate Crossfading and Panning. X-PAN is Direct coupled for use as a CV Processing and Routing toolbox.

X-PAN consists of two full featured Channels and one simpler Channel. The top two Channels each have voltage controlled cross-fading and panning while the third Channel is a stereo aux input with stereo VCA. All three Channels are combined together at the stereo SUM outputs.

features

• 5 signal inputs all routed to a dynamic stereo output
• Contains 10 High Quality VCA circuits in just 10hp
• Fully Voltage Controlled Panning, Cross-fading and Mixing
• Easy to maintain signal integrity with high headroom, low noise circuitry
